How to Replace an Ignition Coil (Coil Pack)

October 10, 2026

To replace an ignition coil on a modern coil-on-plug engine, switch the ignition off, unplug the coil's connector, remove its hold-down bolt, then twist and pull the coil out of the spark plug well. Push the new coil down until it seats on the plug, refit the bolt and click the connector home. The job itself is simple; the real skill is confirming the coil is actually faulty first, which a quick swap test does for free.

What you need

The replacement coil, matched to your engine by part number
Small sockets or Torx bits for the coil bolts and engine cover. A 1/4-inch socket and bit set with 4 to 14 mm sockets and T10 to T40 Torx bits suits these small, light-torque fasteners.
An OBD2 code reader (optional, but it takes the guessing out)

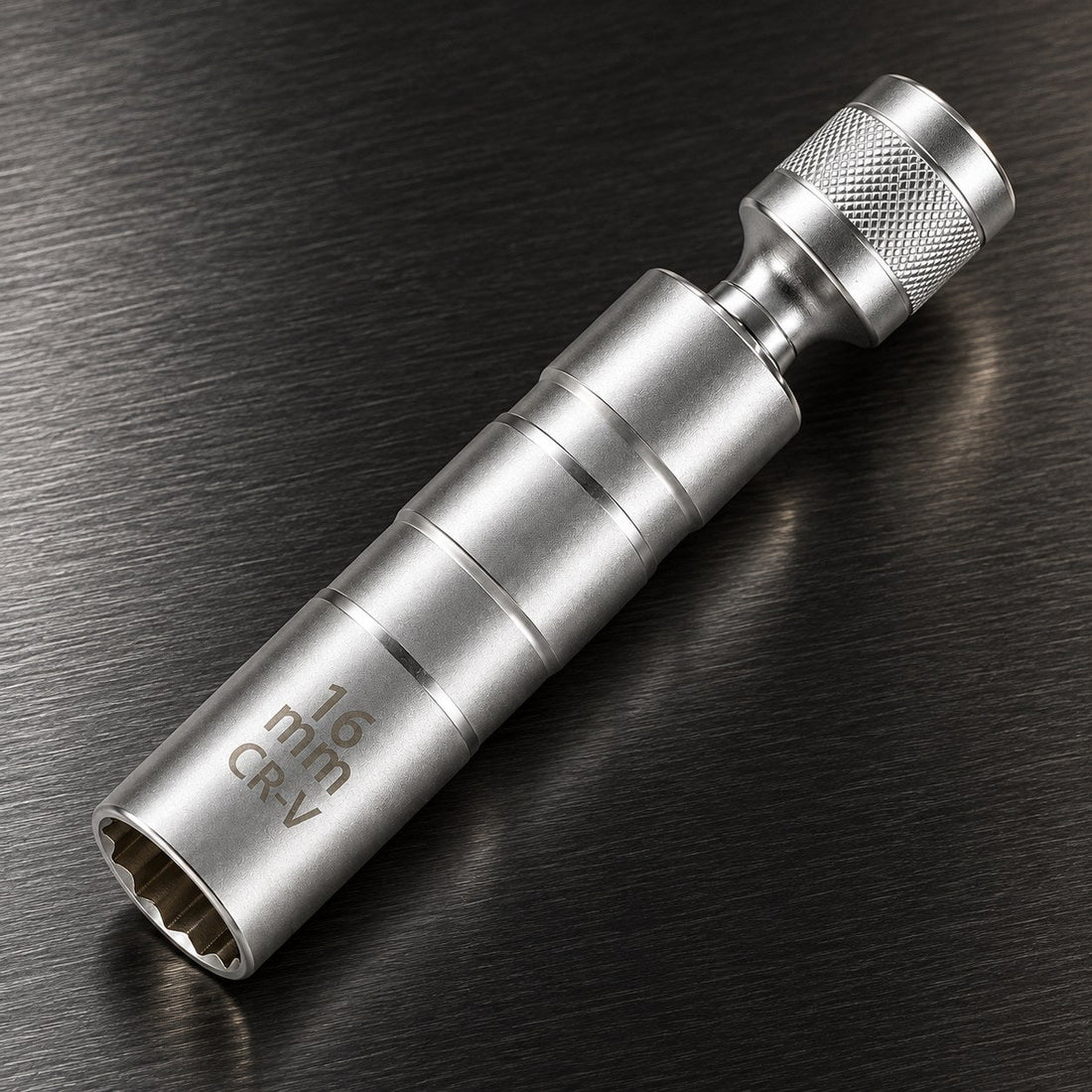

A spark plug socket, if you'll check or change the plug while the coil is out. A 16 mm magnetic spark plug socket fits the most common plug size, but some engines use 14 mm plugs, so check first.
Compressed air and eye protection
Dielectric grease, only if your manual or the coil's instructions call for it

Know which ignition system you have

Coil-on-plug: one coil per cylinder, sitting directly on top of each spark plug. Most modern engines use this, and it's what this guide focuses on.
Coil pack: a block of coils bolted to the engine, with plug wires running to the plugs. In many packs, each coil fires two cylinders.
Single coil and distributor: found on older cars, and a different job from the one described here.

Signs of a failing ignition coil

A weak or dead coil causes a misfire on its cylinder. The engine shakes or stumbles, especially when you accelerate or climb a hill, idles roughly and can feel down on power. The check engine light usually comes on. On OBD2 cars, a misfire on one cylinder sets a code from P0301 to P0312, where the last digits give the cylinder number, while P0300 means random or multiple misfires. These signs overlap heavily with bad spark plug symptoms, which is exactly why you test before you buy.

Diagnose first: the coil swap test

A misfire can come from the coil, the plug, a fuel injector, a vacuum leak or low compression. The swap test tells you whether the coil is to blame:

Read the codes. Plug a code reader into the OBD2 port, usually under the dashboard on the driver's side. Write down the code, and the freeze-frame data if your reader shows it. P0302, for example, means cylinder 2. Your manual or a service diagram shows which cylinder is number 1.
Switch off. Ignition off, key out, engine cool.
Swap the coils. Move the suspect coil to a neighboring cylinder and put that cylinder's coil in its place.
Clear the codes and drive. Drive the way that triggered the misfire before (similar speed, load and engine temperature).
Read the codes again.
- The misfire moved with the coil (P0302 became P0303): the coil is bad.
- The misfire stayed on the same cylinder: the coil is probably fine. Check that cylinder's plug next, with the same swap logic, then look at injectors and compression.
- No code came back: suspect a poor connection that reseating the connector fixed, and keep an eye on it.

No code reader? Look for physical clues: a cracked coil body, burn marks or thin dark tracks on the rubber boot, oil or water in the plug well, or a corroded or loose connector. A basic reader is inexpensive, though, and in the US many auto parts stores will read codes for free.

How to replace an ignition coil step by step

Step 1: Make it safe

Switch the ignition off and take the key out, or keep a keyless fob well away from the car. Coils produce very high voltage, so never handle them, or the plug wires, with the engine running. Let the engine cool so you don't get burned. Some service procedures say to disconnect the battery's negative terminal before ignition work; if yours does, do it.

Step 2: Remove the engine cover and clean around the coils

Pull off or unbolt the plastic cover. Blow dust and debris away from the coils with compressed air, wearing eye protection, so nothing falls into the plug well when the coil comes out.

Step 3: Unplug the connector

Many connectors have a locking slide or clip: pull it back first, then press the release tab and pull the connector off by its body, never by the wires. Old plastic gets brittle with heat, so go gently. A small flat screwdriver can help press a tab, but don't pry with it.

Step 4: Remove the hold-down bolt

Most coils are held by one or two small bolts or Torx screws. Put them straight into a tray or magnetic dish so they can't roll into the engine bay.

Step 5: Pull the coil out

Twist the coil a little to break the rubber boot's grip on the plug, then pull it straight up. Don't lever against the coil body with a screwdriver. If the boot is stuck, keep twisting gently back and forth; old boots can bond to the plug's ceramic insulator. If a boot tears and part of it stays down the well, remove it with long-nose pliers before you go any further.

Step 6: Check the plug well and the plug

Look down the well. Oil there usually means a leaking seal around the plug tube or valve cover. It soaks the boot and can cause the misfire to come back, so get the leak fixed. If your plugs are due, or you don't know when they were last changed, now is the time: our guide on how to change spark plugs covers the full job, from cold engine to final torque.

Step 7: Fit the new coil

Compare the new coil with the old one: same shape, connector and boot length.
If your manual or the coil's instructions call for dielectric grease, apply a thin film inside the boot opening, keeping it on the rubber. If they don't mention it, skip it.
Push the coil straight down into the well until the boot seats on the plug. You'll often feel it pop into place.
Refit the hold-down bolt. It only needs to be snug, because it threads into aluminum or plastic. Use the torque spec if your manual gives one.
Push the connector on until it clicks, then slide the lock home.

Step 8: Clear the codes and test

Refit the engine cover, clear the codes, start the engine and check that it idles smoothly. Then drive under the conditions that caused the misfire and scan again to confirm nothing has come back.

Coil packs with plug wires

Unbolt the old pack, but move the plug wires to the new pack one at a time, so each goes back on the same tower. Mixing them up sends the spark to the wrong cylinder, and the engine will run badly or not at all. Check the wires for cracks and burn marks while you're there.

Mistakes to avoid

Buying a coil before confirming the misfire follows it.
Clearing codes before writing them down.
Not pushing the coil fully onto the plug. A half-seated boot causes the very misfire you're trying to fix.
Leaving a connector that hasn't clicked home.
Ignoring oil in the plug well.
Overtightening the hold-down bolt into soft aluminum or plastic.

When to call a pro

If the misfire stays on the same cylinder after you've swapped the coil and the plug, the cause is more likely an injector, wiring, a vacuum leak or low compression, and that needs proper diagnosis. Also hand it over if several cylinders misfire at once, or if the rear coils sit under the intake manifold, as on some V6 engines.

FAQ

Can I drive with a bad ignition coil?

Only gently, and only as far as you need to for the repair. A misfiring cylinder sends unburned fuel into the exhaust, which can overheat and damage the catalytic converter, an expensive part. A flashing check engine light means a severe misfire: ease off straight away, and if it keeps flashing, stop and have the car towed.

Should I replace all ignition coils at once?

You don't have to. Replacing just the failed coil is normal practice. Some owners replace the whole set on a high-mileage engine because the others are the same age, but that's a cost decision, not a requirement.

Do I need to disconnect the battery to replace an ignition coil?

With the ignition off and the key out, the coils aren't firing. Some service procedures still call for disconnecting the battery's negative terminal first, so follow your manual.

Should I replace spark plugs with ignition coils?

If the plugs are near or past their change interval, yes: the coil is already out, so it adds very little work. A worn plug with a widened gap also needs more voltage to fire, which puts extra load on the coil. If the plugs are recent and look healthy, there's no need.

How long do ignition coils last?

There's no fixed replacement interval. Most coils are replaced only when they fail, and many last for many years, but heat, oil leaking into the plug wells and badly worn plugs can shorten their life.
