How to Remove a Car Door Panel Without Breaking Clips

To remove a car door panel (a door card in the UK), take out the hidden screws (usually behind the inside door handle trim, in the armrest pull cup and along the bottom edge), pop the clips around the edge with a nylon trim tool, then lift the panel up off the window ledge and unplug the cables behind it. The clips are what break, so always pry right next to a clip, never in the middle of the panel.

What you need

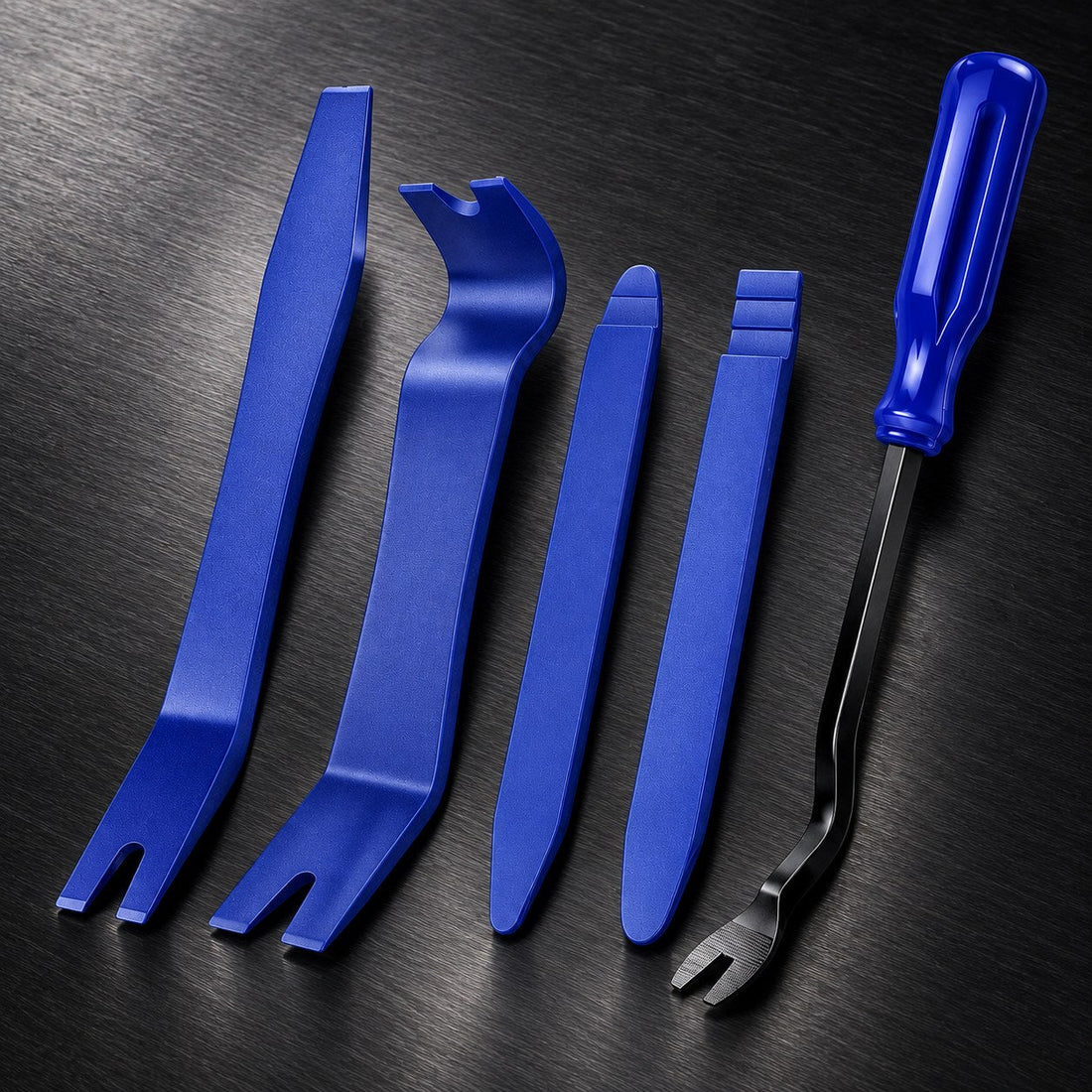

• A trim removal tool kit with nylon pry tools and a clip remover. Nylon is softer than paint and trim, so it won't gouge them the way a metal screwdriver can.
• A Phillips screwdriver plus small sockets or Torx bits, depending on your car. A 1/4-inch socket and bit set covers the small metric sockets and Torx T10-T40 bits that door panels commonly use.
• A few spare door panel clips that match your car (old plastic clips often break, and spares are cheap)
• Your phone, to photograph cable routing and connectors before you unplug anything
• A cup or tray for screws, and a soft blanket to lay the panel on

Before you start

• Check for a door airbag. Many cars put side airbags in the seat or roof lining, but some have them in the door. If the panel carries an SRS or AIRBAG marking, turn the ignition off, disconnect the negative battery terminal and wait the time your service manual specifies before unplugging anything. Airbag connectors are usually yellow. Never probe or test them.
• Lower the window if you need it down. If you're working on the glass or regulator, lower it while the switch is still connected.
• Look up your model. Screw locations vary a lot between cars. A quick look at a model-specific video or repair manual saves you from prying against a screw you didn't know was there.
• Work somewhere warm if you can. Plastic clips and trim are more brittle in the cold and snap more easily.

How to remove a car door panel step by step

Step 1: Find and remove every screw

1. Check inside the armrest pull cup or grab handle. There is often a screw under a small cover or rubber mat.
2. Look behind the inside door handle. Many cars hide one screw there, sometimes under a small cap.
3. Run your hand along the bottom and rear edges of the panel for screws pointing up or sideways.
4. Pop off any small round or rectangular caps with the thinnest nylon pry tool. Screws often sit underneath.
5. On some cars, the triangular trim by the mirror (where a tweeter may live) must come off first.

Step 2: Remove the handle trim and switches

1. Free the inside handle bezel. Depending on the car, it either unscrews, slides forward, or unclips.
2. Lift the power window switch panel if your car's design allows. Slide a flat nylon tool under its rear edge and lever up gently, then press the tab on the connector to unplug it. On many cars the switch stays on the door panel instead, and you unplug it once the panel is loose.
3. If you have a manual window crank, remove it now (see the section below).

Step 3: Pop the clips

1. Start at a bottom corner, where it's easiest to open a gap.
2. Slide a wide nylon pry tool between the panel and the door to open a small gap.
3. Feel for the clip with the tool. You'll meet a firm spot where the panel won't move.
4. Slide the clip remover's fork in right next to the clip, as close to its base as you can get.
5. Lever straight out from the door. The clip should release with a pop.
6. Work along the bottom, then up each side, one clip at a time. Don't pull the panel by hand to "help": that's how panel mounting tabs crack.

Step 4: Lift the panel off the window ledge

With the screws out and the clips free, the panel is usually still hooked over the window ledge at the top. Lift it straight up an inch or two until it clears, then ease it away from the door. Don't pull it far yet: cables are still attached behind it.

Step 5: Disconnect what's behind it

1. Take a photo of everything before you touch it.
2. Unhook the door handle cable or rod. It usually clips into the back of the handle; note exactly how it sits.
3. Unplug the electrical connectors for the window switch, mirror switch, courtesy light and any speaker. Press the release tab, then pull on the connector body, never on the wires.
4. Set the panel face down on a blanket.

Behind the panel you'll usually find a plastic sheet (the vapor barrier) stuck on with sticky black sealant. It keeps water inside the door away from the cabin. If you need to get into the door, peel it back slowly and stick it back down afterwards. Patch any tears with waterproof tape.

How to remove a door panel with a manual window crank

Most window cranks are held on by a spring clip behind the handle. Press the door panel back slightly so you can see behind the crank, then push the clip off with the clip remover's fork or a small hooked tool. Another way that often works: slide a thin rag behind the crank and pull it back and forth until it pushes the clip out. Some cranks use a screw under a cap instead. Note the crank's angle with the window closed so it goes back on the same way.

Can you do it without a trim tool?

Yes, for a one-off job. A flat screwdriver wrapped in a few layers of electrical tape or a cloth, or a plastic putty knife, will pop most clips. The trade-off is that a narrow metal tip concentrates force on a small spot, so it's much more likely to dent soft panel plastic or chip the door's paint. Wider nylon tools spread the load and let you get close to each clip, which is why they break fewer clips.

Troubleshooting and mistakes to avoid

• One area won't release. There's almost always a hidden screw. Stop prying and look again, especially behind caps and trim pieces.
• Clips stayed in the door. Pull them out of the door holes with the clip remover and fit them back into the panel before refitting.
• A clip broke. Replace it rather than leaving a gap, or the panel will rattle and sit loose. Match the clip by part number from a dealer, or compare it with the old one when buying a spare.
• A plastic mounting tab on the panel cracked. Plastic repair adhesive can rescue it, but a broken tab often means a loose spot for good.
• Don't pull on wires or cables to take the panel's weight. Rest it on your knee while you unplug things.

How to install door panel clips and refit the panel

1. Check every clip. Replace any that are broken, cracked or missing, and seat them in the panel's mounting slots, not in the door.
2. Reconnect the handle cable or rod and every electrical connector, using your photos.
3. Test the window, locks, mirror, handle and speaker before you push the panel home. Finding a loose plug after refitting means doing the whole job again.
4. Hook the top edge over the window ledge first.
5. Line the clips up with their holes in the door. You can often see them by looking down behind the panel.
6. Press firmly with the heel of your hand directly over each clip until it clicks in. Don't punch or hammer the panel.
7. Refit the screws, handle bezel, switch panel and caps. Snug the screws only: they usually thread into plastic and strip easily.

When to call a pro

If your door has an airbag and you're not confident handling the battery and connector precautions, let a shop do it. The same goes for panels that are bonded or glued on some newer and premium cars, or if the job behind the panel (a window regulator, for example) is more than you want to take on.

FAQ

Can you remove a door panel without a trim tool?

Yes. A taped-up flat screwdriver or a plastic putty knife will do it, but you're more likely to dent the panel, chip the paint or snap clips. Nylon trim tools are cheap and spread the force better.

Do I need to disconnect the battery to remove a door panel?

Not usually. If the door has an airbag (look for an SRS or AIRBAG marking), disconnect the negative terminal and wait the time your manual gives before unplugging anything. Disconnecting is also sensible if you'll be working near wiring for a long time.

Can you reuse door panel clips?

Often, if they come out intact and still grip firmly. Older plastic clips get brittle and many break on removal, so keep a few spares on hand before you start.

How do you remove a door panel with power windows?

The same way, with one extra step: unplug the window switch connector. Either lift the switch panel out first with a nylon pry tool, or remove the panel and unplug the switch from behind. If you need the glass down, lower it before you disconnect anything.

Why does my door panel rattle after I put it back?

Usually a broken or missing clip, a clip that didn't fully seat, or a loose cable inside the door. Press around the edge to find the soft spot, then replace or reseat that clip.
