How to Use a Bolt Extractor Socket Set

A bolt extractor socket removes a rounded bolt or nut by biting into the damaged head: you tap it on with a hammer, then turn it counterclockwise with a ratchet or breaker bar, and its reverse spiral grips harder the more you pull. The skill is in choosing the size that needs only a light tap and keeping the pull smooth. This guide covers the steps, the sizes, the drive question, and how to get the bolt back out of the socket afterward.

What you need

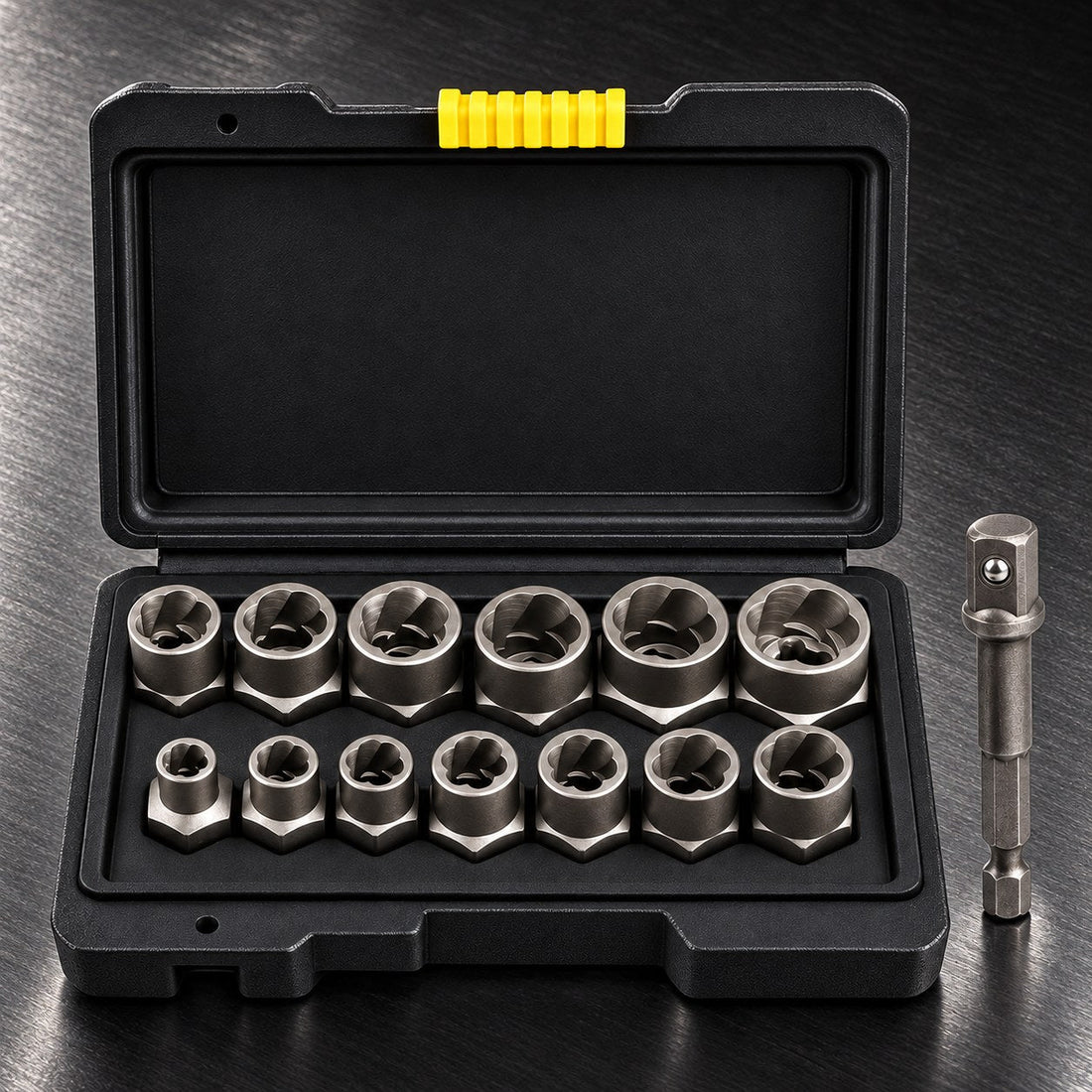

• A 14-piece bolt and nut extractor socket set: 13 extractor sockets from 6.35 to 19 mm, plus an adapter (1/4-inch hex shank to 3/8-inch drive), in a hard case
• A 3/8-inch drive ratchet or breaker bar
• A hammer
• A wire brush and penetrating oil
• A vise or a thin punch, to get the bolt back out of the socket afterward
• Safety glasses, and jack stands if you're working under the car

How an extractor socket works

Look inside one and you'll see tapered flutes that spiral the opposite way to a normal thread. When you turn counterclockwise, those flutes dig into the outside of the rounded head. The harder you turn, the deeper they bite, so the grip rises with the load instead of slipping.

Two things follow from that design. It only grips in the loosening direction, so you can't use it to tighten anything. And it scars the head, so the fastener is single-use once it's out.

The sizes in the JUSMIR set

The 13 sockets are 6.35, 8, 9.5, 10, 11, 12, 12.7, 13, 14, 16, 17, 17.5 and 19 mm. Four of them line up with common imperial sizes: 6.35 mm is 1/4 in, 9.5 mm is about 3/8 in, 12.7 mm is 1/2 in and 17.5 mm is about 11/16 in. There's no 15 mm or 18 mm socket in the set.

How to choose the right size

The rule is simple: the right extractor needs a light tap to go on.

1. Start with the socket that matches the bolt's original size.
2. If it slides on with no resistance, the head has worn smaller than its size. Go down one size.
3. If it won't start even with a firm tap, go up one size.

Example: a rounded 17 mm bolt. Try the 17 mm extractor first. If it drops on loosely, use the 16 mm. The 17.5 mm socket is there for 11/16 in heads.

Step by step: removing a rounded bolt or nut

1. Make it safe. Glasses on. If you're under the car, it should be on jack stands on firm ground. Let a hot engine or exhaust cool down.
2. Clean and soak. Wire brush rust and dirt off the head so the flutes bite into metal, not scale. Spray penetrating oil on the threads and give it at least 15 minutes.
3. Pick the size using the method above.
4. Seat it. Hold the extractor square on the head and tap it on with the hammer until it's as far on as it will go. Firm taps, not full swings. The flutes need to grip as much of the head's height as possible.
5. Attach the handle. For a seized bolt, use a breaker bar, because a ratchet's mechanism is the weak point under heavy load. Make sure the drive is pushed fully into the extractor.
6. Turn counterclockwise. Hold the socket end with your other hand to keep it square, and pull smoothly. You'll feel the flutes bite, then the bolt cracks loose.
7. Back it out. Once it's free, switch to a ratchet and unscrew it the rest of the way.

If the extractor starts to slip, stop. Tap it further on, or drop one size. Turning a slipping extractor just polishes the head round again.

Getting the bolt out of the socket

Because the extractor has wedged itself onto the head, the old bolt stays stuck inside it. Two ways to get it out:

1. Unwind it. Clamp the bolt's shank in a vise and turn the socket clockwise with your ratchet. That is the opposite of the direction the spiral bites in, so the grip lets go.
2. Knock it out from behind. If the socket's drive end has a through hole, rest the socket on slightly open vise jaws so the bolt has somewhere to drop, put a thin punch through the hole onto the bolt, and tap it out. Keep your glasses on.

Using the adapter with a drill

The included adapter has a 1/4-inch hex shank on one end and a 3/8-inch square drive on the other, so an extractor socket can go in a drill. It's handy for small fasteners that are rounded but not really tight, such as a chewed 8 mm or 10 mm screw on a cover or bracket. Set the drill to reverse, low gear and slow speed, and press the socket firmly on. For a properly seized bolt, break it loose by hand first and use the drill only to spin it out.

3/8-inch drive vs 1/2-inch drive

This set uses a 3/8-inch square drive, the everyday size for car work on fasteners in its 6.35 to 19 mm range: engine covers, brackets, exhaust and body bolts. A 1/2-inch drive is for high-torque jobs such as wheel (lug) nuts, suspension bolts and crank pulley bolts.

If a 3/8-inch ratchet isn't enough, a longer 3/8-inch breaker bar is the sensible next step. A 1/2 to 3/8 reducer lets you use a 1/2-inch breaker bar, but then you can put far more force through the extractor than a 3/8-inch tool is meant to take. Pull smoothly and stop if anything slips or flexes. Better still, go back to penetrating oil and careful heat (never near fuel lines, wiring, plastic or rubber) before you add leverage.

Mistakes to avoid

• Beating it on. Heavy blows can crack the socket or wedge it on so hard it's a struggle to remove. Use light, firm taps.
• Picking one too big. A loose extractor slips and rounds the head further.
• Putting it on an impact wrench. This set is made for a ratchet or breaker bar.
• Trying to tighten with it. It only grips counterclockwise.
• Reusing the bolt. Fit a new one and torque it to your vehicle's spec.

When an extractor socket isn't the answer

• The head has snapped off. With nothing left to grip, you need to drill and use a screw extractor. See how to use a screw extractor without breaking it.
• Left-hand threads. A few fasteners loosen clockwise, and a reverse spiral won't grip in that direction.
• A recessed head. If the head sits in a pocket narrower than the socket's outside wall, it won't reach.
• Seized beyond hand-tool force. More leverage risks snapping the bolt. Heat, or a shop that can weld a nut onto it, is the next step.

If a brake, steering or suspension bolt won't come out cleanly, a mechanic with welding gear and heavier tools is worth paying for. For every other way to deal with a rounded head, including the no-extractor ones, read how to remove a rounded bolt or nut.

FAQ

Do bolt extractor sockets work on nuts?

Yes. They grip a rounded hex nut the same way as a bolt head, as long as the socket can seat fully. A long stud sticking out of the nut can stop it going all the way on.

What size extractor do I need for a rounded 17 mm bolt?

Start with the 17 mm. If it goes on with no resistance at all, use the 16 mm.

Can I use a bolt extractor socket with an impact wrench?

Not this set. It's designed for a 3/8-inch ratchet or breaker bar, and steady hand force gives you more control over a damaged head anyway.

Will an extractor socket remove a locking wheel (lug) nut?

It can, and plenty of people try it when the key is lost. But wheel nuts are tightened hard, locking nuts are made to resist removal, and some have a free-spinning outer ring that defeats extractors. A tire (tyre) shop has dedicated removal tools and can usually do it quickly.

How do I get the bolt out of the extractor?

Clamp the bolt in a vise and turn the socket clockwise to release the spiral grip, or, if the drive end has a through hole, support the socket and knock the bolt out from behind with a thin punch.
